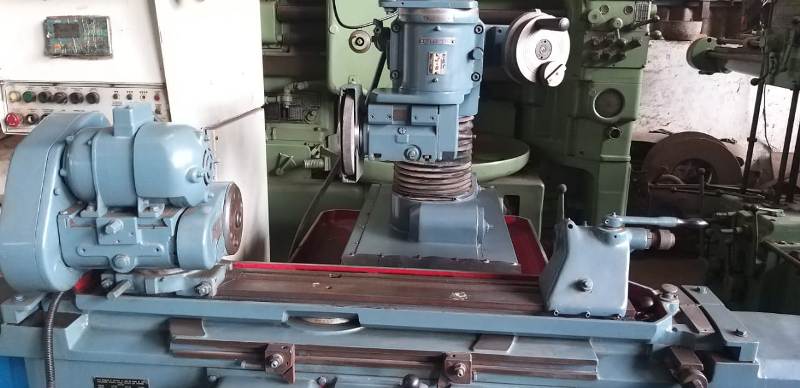

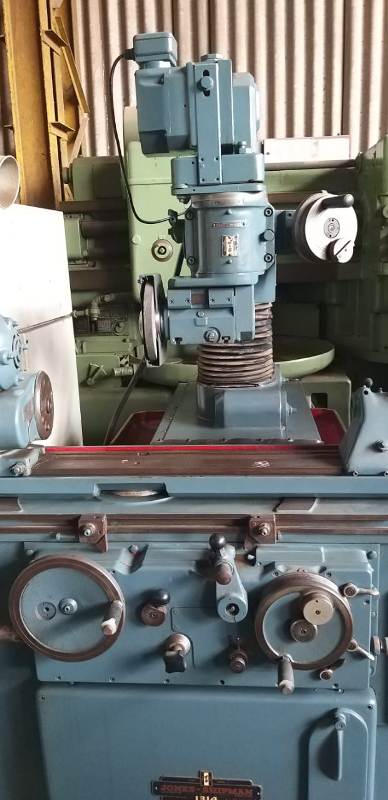

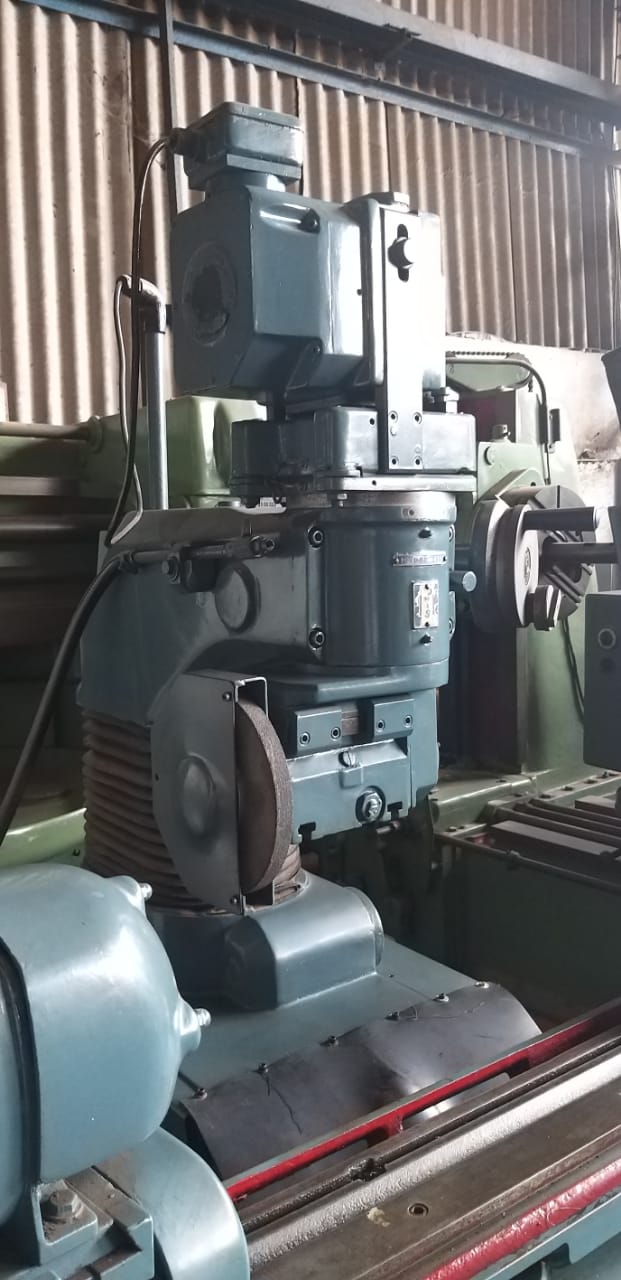

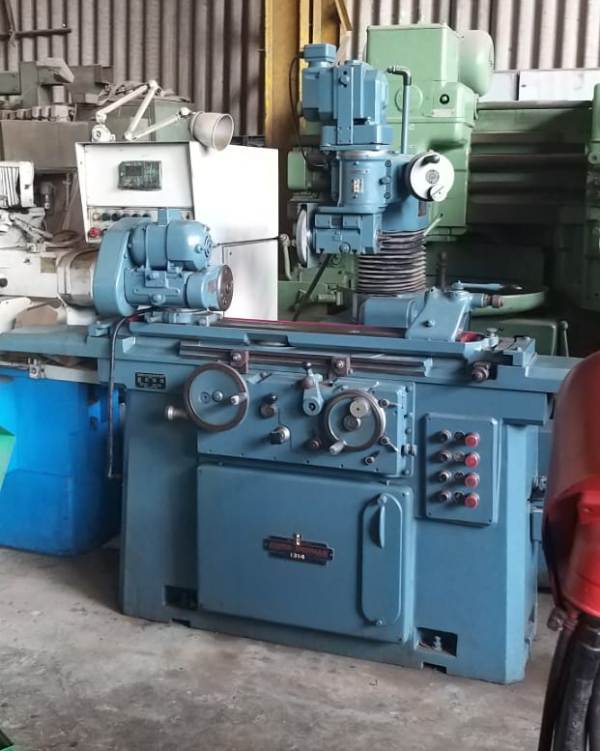

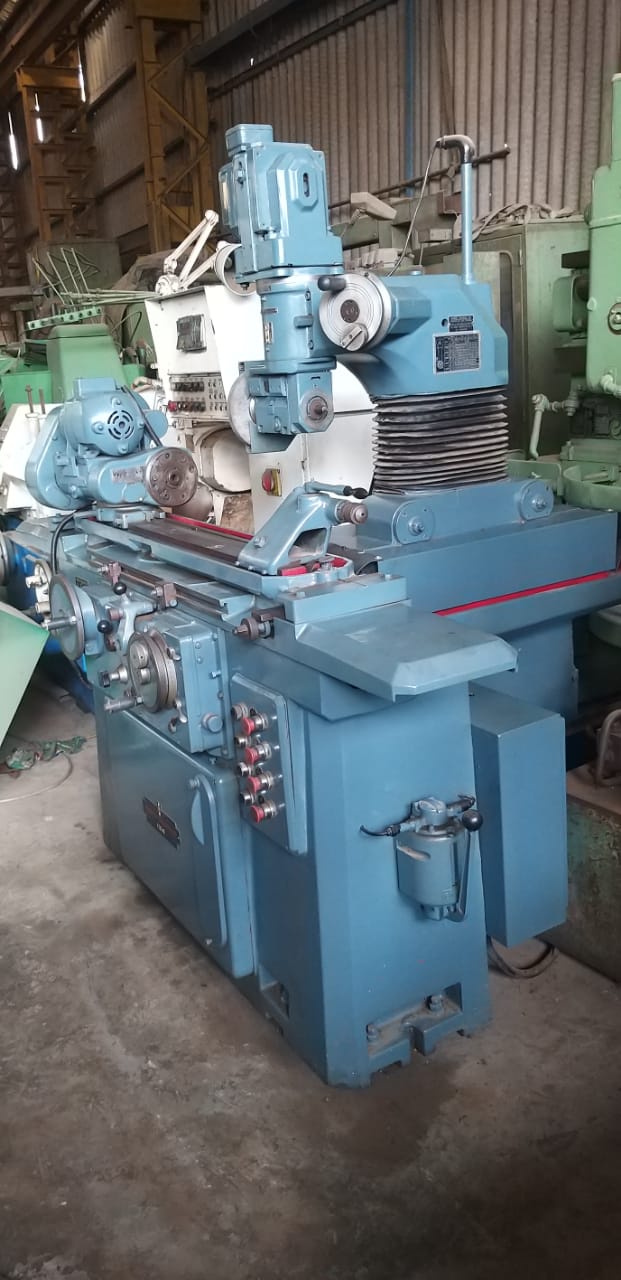

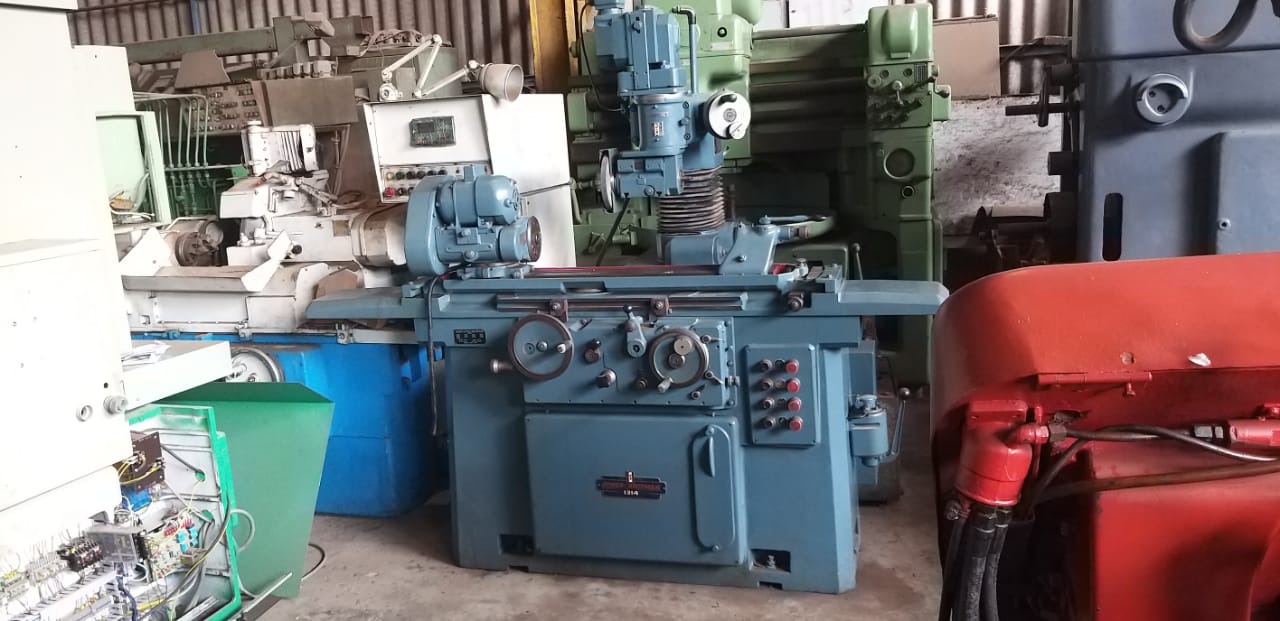

1 / 7Jones Shipman Hydraulic Universal Cylindrical Grinder
Description

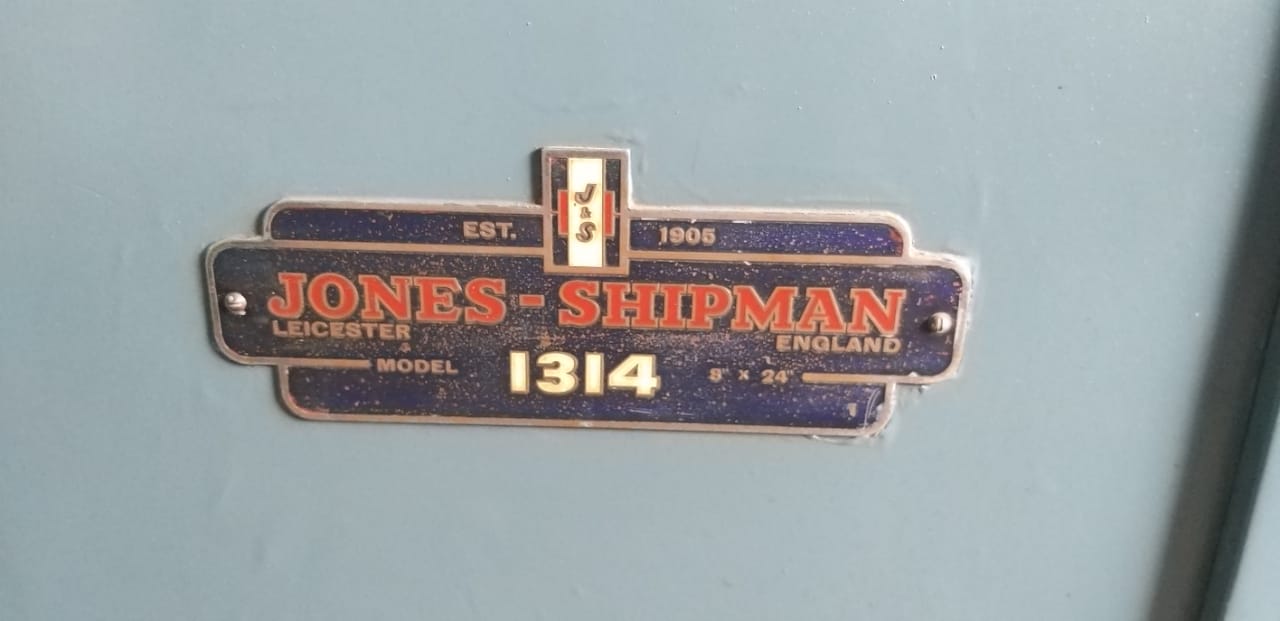

The Jones Shipman Hydraulic Universal Cylindrical Grinder is a pre-owned Grinder Cylindrical Universal machine of UK origin, available from Ajmera Enterprise in Navi Mumbai, India. Cylindrical grinders of this type are used to grind the outside diameter of round components to precise size and surface finish, common in precision and tool-room work. Offered as model 1314, it has been inspected and tested under power before listing, providing a cost-effective, ready-to-use option for buyers of reliable pre-owned machinery — contact us for current pricing, photographs and availability.
Specifications
As documented for this machine. Ask us for the full spec sheet.
Capacity 8`` X 24`` (203mm X 610mm)
Swing 8`` (203mm)
Between Centres 24`` (610mm)
Table Swivels 7-0-7 Degrees
Table Traverse Speed 3``-144`` (76-3658mm)
Work Head Input 380/420/3/50 Ac 0.33 Hp
Work Head Speeds 30-415 Rpm
Work Head Swivels 10-0-90 Degrees
Wheel Head Input 380/420/3/50 Ac 1 Hp
Nominal Stone Size 8`` (203mm) Diameter X 3/4`` (19mm) Face
Internal Grinding Attachment Yes
Wheel Head Infeed Rate 0.0002``-0.0012`` (0.01-0.03mm)
Fitted With Wheel Dresser
Length 7' (2.13m)
Width 5' (1.52m)
Height 5'10`` (1.78m)
Nett Weight Approx. 2 Tons (2032 Kgs)
